OEM Terex TR100 dumper cab left hand door assy 15272275

OEM Terex TR100 dumper cab left hand door assy 15272275

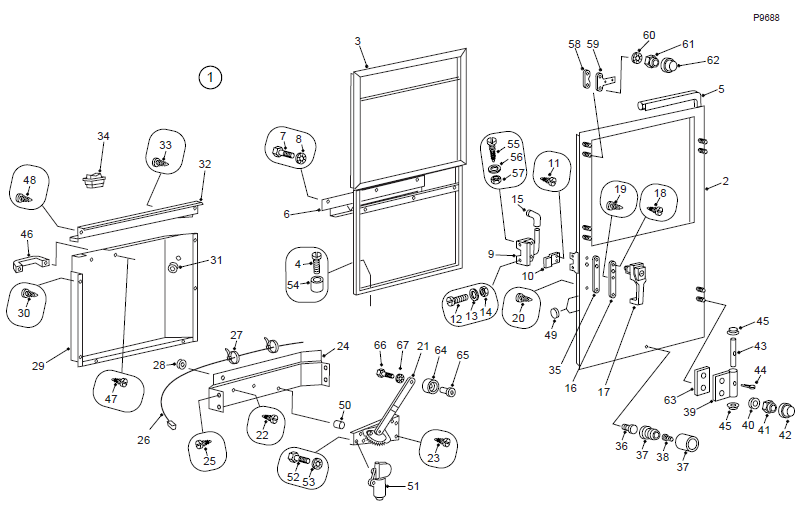

A 001   001 15272275 .DOOR ASSY-LH
   002   001 15272296 ..DOOR-LH
   003   001 15272276 ..WINDOW-SLIDING-LH
   004   002 15272277 ..SCREW
   005   ASR 15272099 ..SEAL-BULK
   006   001 15272870 ..SUPPORT-GLASS
   007   003 15270754 ..SCREW
   008   003 15272279 ..WASHER
   009   001 15272280 ..DOOR LOCK-LH
   010   001 15272105 ..ADDITIVE-LOCK
   011   002 15270754 ..SCREW
   012   002 15270841 ..SCREW
   013   002 15270840 ..WASHER
   014   002 15270833 ..NUT
   015   001 15270843 ..COVER
   016   001 15272101 ..SPACER-HANDLE RH
   017   001 15270751 ..HANDLE-DOOR
   018   001 15270829 ..SCREW
   019   001 15272102 ..SCREW
   020   001 15272103 ..SCREW
   021   001 15272871 ..ARM-SLIDING
   022   002 15270829 ..SCREW
   023   001 15272283 ..SCREW
   024   001 15272284 ..SUPPORT
   025   004 15270770 ..SCREW
   026   001 15272285 ..CABLE
   027   002 09379264 ..TIE-CABLE
   028   001 15272286 ..GROMMET
   029   001 15272287 ..DOOR-INNER
   030   007 15270754 ..SCREW
   031   001 15272288 ..GROMMET
   032   001 15272289 ..SWITCH-SUPPORT
   033   003 15272290 ..SCREW
   034   001 15272141 ..SWITCH-WINDOW LH
   035   001 15272100 ..SEAL-HANDLE
   036   001 15270921 ..NUT
   037   001 15272108 ..RETAINER-DOOR
   038   001 15270867 ..SCREW
   039   002 15272271 ..HINGE
   040   004 15272113 ..WASHER

   041   004 15272114 ..NUT-SAFETY
   042   004 15272115 ..CAP-NUT
   043   002 15272272 ..PIN
   044   002 15272273 ..PIN-SPLIT
   045   004 15272274 ..CLIP
   046   001 15270752 ..HANDLE-PULL
   047   002 15272102 ..SCREW
   048   002 15270754 ..SCREW
   049   004 15272294 ..SPACER
   050   001 15272292 ..SPACER
   051   001 15272140 ..MOTOR-DOOR LH
   052   003 06350620 ..SCREW
   053   003 15270840 ..WASHER
   054   002 15272293 ..SPACER
   055   001 15270781 ..BOLT
   056   001 15270840 ..WASHER
   057   001 15270833 ..NUT
   058   002 15272294 ..SPACER
   059   002 15272295 ..SUPPORT-MIRROR
   060   004 15270840 ..WASHER
   061   004 15270833 ..NUT
   062   004 15270791 ..CAP
   063   002 15272270 ..SEAL
   064   001 15272872 ..ROLLER-NYLON
   065   001 15272873 ..BUSH-THREADED
   066   001 15270781 ..BOLT
   067   001 15270840 ..WASHER

Any problem or inquiry ,feel free to contact with me : feiling@aovite.com
